Time-of-Flight sensor in miniature format

FT 25-RLHP - High range in a compact housing

Highlights

  • Excellent detection properties on almost all surfaces such as metal or colored plastic at large distances up to 1500 mm
  • Precisely adjustable background suppression
  • Switching point, switching window and switching frequency can be set via button, control input or IO-Link
  • Easy alignment due to well visible light spot
  • Safe operation with laser class 1

Typical FT 25-RLHP

High range and reliable detection in miniature format: The FT 25-RLHP is a true all-rounder. Thanks to its compact housing, in combination with its long range of 1500 mm and minimal hysteresis, it is used across all industrial sectors.

快速链接
Flyer: FT 25-RLHP - High range in a compact housing
Installation manual: Port & Device Configuration Tool - EN - 2022-09

Applications and industries

用于自主存储和检索的载货工具的位置测定
Position determination of load carriers

Presence monitoring and position determination of load carriers, e.g. for autonomous storage and retrieval using mobile robots

检测传送带上的物体
Detection of packages on conveyor belts

To ensure a smooth process at loading and transfer points, the presence of the packages should be checked with an optical detection system

传送带上 PET 瓶的存在和不存在控制
Presence/absence control of PET bottles

Depending on whether the conveyor belt is free or not, a robot should place a PET bottle on the conveyor line or not.

利用光学传感器对车身部件进行位置控制
Position control of car body parts

Position control of various components, such as hood, trunk lid and doors, of a car body

自动分配货架隔间
Compartment occupation check in high bay warehouses

Precise positioning and reliable control are crucial for the automatic compartment allocation of the shelves

Warehouse & Logistics

  • Compartment occupation check in high bay warehouses
  • Presence control and position determination of load carriers, e.g. for autonomous retrieval and storage with the help of mobile robots
  • Detection of objects on conveyor belts

Assembly & Handling

  • Presence detection of components to be assembled, e.g. for material flow control at manual workstations and assembly lines

Robotics

  • Presence detection and position determination of large objects

Automotive industry

  • Position control of various components, such as engine hood, trunk lid and doors, of a car body, which is conveyed on a SKID

Others

  • Monitoring of the track in rail-guided robots or detection of objects or danger points in automated guided vehicles (AGVs)

过滤产品

选择：
重所有的过滤器

对不起，没有产品符合搜索标准被发现。

2 产品符合搜索标准

图
描述
Sensor principle
Working distance min. [mm]
Working distance max. [mm]

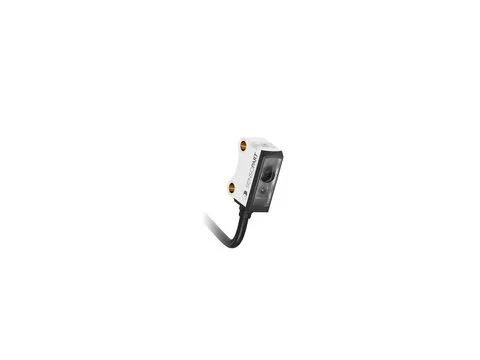

FT 25-RLHP-PNSL-KL4
Diffuse laser sensor with background suppression
Sensor principle
Photoelectric diffuse sensor with Background Suppression
Working distance min. [mm]
0
Working distance max. [mm]
1500

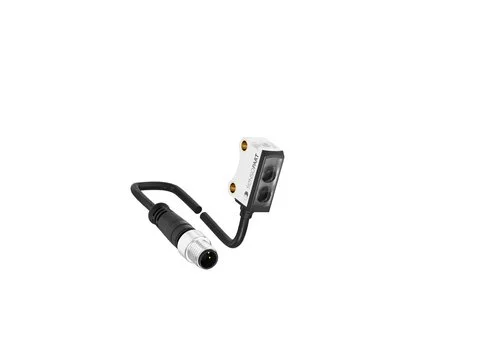

FT 25-RLHP-PNSL-M4M
Diffuse laser sensor with background suppression
Sensor principle
Photoelectric diffuse sensor with Background Suppression
Working distance min. [mm]
0
Working distance max. [mm]
1500
